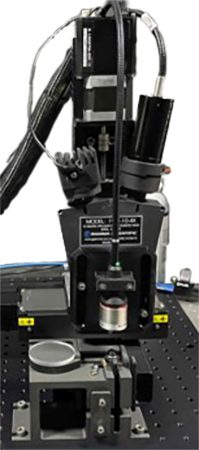

GS-191R

This GS-191R is a fully automated, non-contact 1st surface reflectance tester designed to measure the color and anti-reflective (AR) coating on flat or curved surfaces—specifically optimized for camera lenses. Equipped with an Auto Apex Finder for curved surfaces, as well as Auto-focus and Auto R% measurement, the GS-191R eliminates the need for manual alignment, tuning, or operator judgment. It delivers rapid, repeatable results by leveraging Gamma Scientific’s high-sensitivity spectrometer and a proprietary, efficient reflectance optical design.

REQUEST A QUOTE

  • Auto Measurement

    Auto Apex Finder, Auto Focus, & Auto R% Measurement

  • Short Cycle Time

    High-sensitivity spectrometer and a proprietary, efficient reflectance optical design

  • Non-Contact Measurements

    Measure individual lenses or lenses in assembled camera modules

  • Automated Calibration

    Automated optical calibration ensures consistent accuracy

  • Production-Ready Software

    Barcode read/tracking and time stamp, binning functions, & database network link

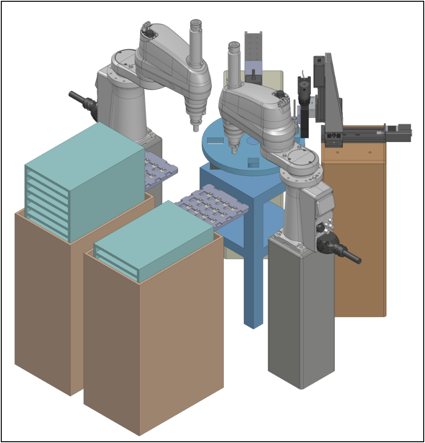

Lens R% tester concept with Pick and Place
Inline configuration for large cover glass – 9 optical modules – AR Reflectance and Color. Gamma system connected to factory PLC

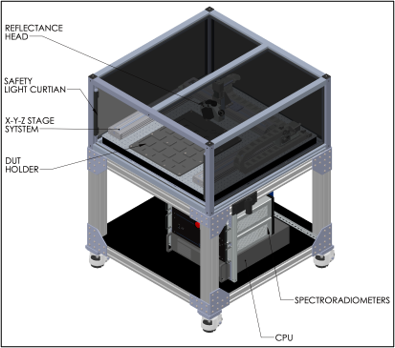

Semi-automatic configuration. User programmable for different sample size and measurement location.

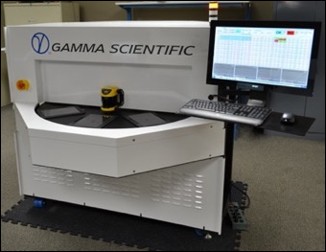

Rotary configuration: 100% QC for cover glass AR coating color

automation examples:

  • Rotary configuration:  100% QC for cover glass AR coating color.
  • Semi-automatic configuration:  User programmable for different sample size and measurement location.
  • Inline configuration: For large cover glass – 9 optical modules – AR Reflectance and Color.  Gamma system connected to factory PLC.
  • Lens R%: Reflectance percentage tester concept with Pick and Place.
