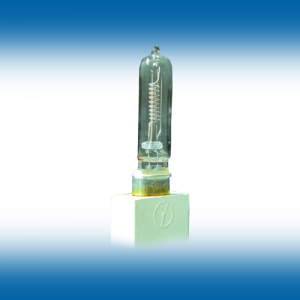

The 5000 FEL 1000-Watt tungsten-halogen Lamp Source System provides absolute calibration of spectral irradiance from 250 to 2500 nm. The system can be configured simply as a lamp (bearing the ANSI designation of FEL & calibrated to the 2000 NIST irradiance scale), or to include accessories such as a lamp holder, alignment jig, lamp housing, power supply and shunt box. Lamp calibration is directly traceable to NIST, employing the 2000 NIST scale from 250 to 2400nm.
- Quartz halogen, ANSI type FEL, 1000 Watt lamp
- Spectral range from 250 to 2500 nm
- Operating current ranging from 1.0 to 8.3 A
- 193 tabulated spectral irradiance points, consisting of 34 direct transfer and 159 derived points
- Available in both calibrated and uncalibrated configurations
- ISO/IEC 17025 accreditation by NVLAP (NVLAP lab code 200823-0)
Wavelength | Watts / cm2 – nm |
|---|---|
| 250 nm | 1.55 x 10-8 |
| 350 nm | 7.44 x 10-7 |
| 555 nm | 1.04 x 10-5 |
| 1100 nm | 2.09 x 10-5 |
| 1700 nm | 1.09 x 10-5 |
| 2500 nm | 4.17 x 10-6 |
Accuracy Values | |
Spectral Irradiance Uncertainty (NIST standards – see Tech note 262) | ± 1.94% at 250 nm ± 0.8% from 450 – 1600 nm ± 2% from 1600 – 2400 nm ± 5.0% at 2500 nm |
Illuminance and Luminous Intensity | ± 3% |
Chromaticity Coordinates | ± 0.2% |
Correlated Color Temperature (CCT) | ± 5° K |
Model 5000-16A Selected, Seasoned 1000 Watt Tungsten Halogen Lamp
Not calibrated, with bi-post base. Please contact factory for additional information.
Model 5000-16-C Selected, Seasoned 1000 Watt Tungsten Halogen Lamp
Calibrated (250-100nm). Must be used in conjunction with 5000-17 Lamp Alignment Jig and 5000-18 Lamp Holder. Please contact factory for additional information.
Model 5000-17 Lamp Alignment Jig
The Model 5000-17 lamp alignment jig is used to align the 5000-18 lamp holder with respect to the optical axis of the instrumentation to be calibrated. It consists of a rodmounted piece of plane glass that contains intersection scribe marks. These marks are precisely positioned (±0.0005 inch) with respect to the bottom of the medium bi-post base.
Model 5000-18 Lamp Holder
The Model 5000-18 lamp holder is based on the original NIST design as described in NIST tech Note 594-2. Its kinematic design permits precise positioning and repositioning of the lamp standard when used with the 5000-17 lamp alignment jig. Once alignment of the lamp holder is achieved, lamps can be readily interchanged with minimal loss of accuracy. The positioning surfaces consist of one “V-shaped” contact and one “tongue” contact that work with the spring loaded cylinders to precisely secure the lamp bi-posts. An adapter baseplate permits the lamp holder to be mounted directly into Gamma Scientific’s Model 5000-6 lamp housing. This adaptor can simply be removed from the lamp holder in applications that do not require the 5000-6 lamp housing.
Model 5000-6 Lamp Housing
Compact and portable, the 5000-6 lamp housing shields the 1000-watt lamp from users while eliminating stray light from room reflections. A proprietary thermal exhaust design and integrated fans maintain a constant working temperature for the lamp, and an integrated elapsed time meter tracks lamp usage.
Model 5000-6B Precision Shunt Box
The 5000-6B Precision Shut Box provides a high precision dual shunt circuit for monitoring of lamp current. Connections are provided for an external 6.5 digit voltmeter (not included). This item has NIST traceable calibration
Model 5000-2c Single Output DC Power Supply
| Model 5000-2c 2000W, Single Output DC Power Supply Specifications | |
| Line Regulation | 0.05% |
Output Ratings Current Voltage | 0 to 18 A 0 to 120 V |
Programming Accuracy Current Voltage |
12 mA 120 mV |
Ripple and Noise from 20 Hz to 20 MHz Voltage rms Voltage p-p Current rms |
1.9 mV 16 mV 12 mA |
| Weight | 28.2 kg |
| Dimensions | 426 mm W x 133mm H x 640 mm D |
| Failsafe Ciruit | Yes |
| Circuit Breaker | Yes |
| Warranty | 1 year |
| Long-term Accuracy | 0.05% over 8 hours 0.1% over 1000 hours |
| Operating Temperature Range | 0 to 55° C |
