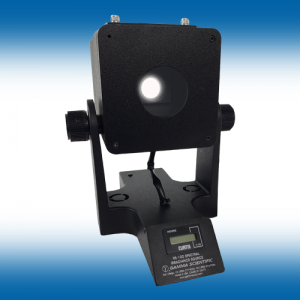

RS-10D Calibration Light Source

RS-10D Uniform Light Source

Calibrated Wavelength Range @ Data Interval

300-1100 nm @ 5 nm

 Calibration Interval

W/cm²*nm
 8.0 x 10^-9 at 300 nm
 7.5 x 10^-7 at 550 nm
 2.0 x 10^-6 at 800 nm
 2.2 x 10^-6 at 1100 nm

Output, Nominal Illuminance at 25 cm

 592 lm/m² (LUX); 55 lm/ft² (fc)

Nominal Radiance with RS-70-2 Diffuser

 W/cm²*sr*nm
 6.2 x 10^-9 at 300 nm
 1.0 x 10^-6 at 550 nm
 9.0 x 10^-6 at 800 nm
 6.5 x 10^-5 at 1100 nm

Nominal Luminance with RS-70-2 Diffuser

850 cd/m²

Correlated Color Temp. (CCT)

2856 ± 20K Reported to ± 7K

Correlated Color Temp. with RS-70-2 Diffuser

2575 ± 50K Reported to ± 7K

Uniformity of Diffuser

±3% over 25 mm

NIST Standards of Irradiance Output Uncertainty

±2.5%

Uniformity of Exit Port

±0.75%

Uniformity of Irradiance Plane Normal to Exit Port

±2% over 50 mm; diameter at 25cm

Size

197 mm (7.8 in) L x 175 mm (6.9 in) W x 203 mm (8.0 in) H          2.8 kg (6.25 lb)

Regulator Type

Constant current

Output Current

4A maximum

Current Accuracy, Long Term

Better than 0.5%

Set-ability

Better than 0.2%

Temperature Drift

Less than ±.25%/10°C

Temperature Range

15°C to 35°C

Humidity

10%-85% non-condensing

Regulation

Less than ±0.2% change for 10 Volt line change

Thermal drift After 8 Minute Warmup

Less than 0.1%

Current Ramp On/Off Time

Approximately 30 seconds

Power

100 to 240 VAC, 50/60 Hz          30 Watts Maximum

If uncalibrated output at approximately 2856K is acceptable for your application, please specify item number RS-10DU at time of order.

Specifications are subject the change without notice.
