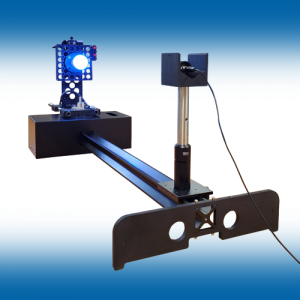

The 940 LED-200 Series Goniometer is optimized to provide precise measurement of angle dependent spatial radiation properties of LEDs and small luminaires, accommodating sample sizes up to 200 mm in diameter.
940 LED Goniometers can be combined with a Gamma Scientific Spectroradiometer or UDT Series photometer depending on your specific measurement needs. Combining the goniometer with a spectroradiometer allows for measurement of luminous flux, color coordinates and CRI. Connecting the goniometer to a photometer provides fast measurements of spatial light distribution.
Applications
- Rapid, precise characterization of spatial light distribution
- Accurate measurement of LED luminaires, lamps and modules
- Models optimized for specific sample sizes
- Work seamlessly with our spectroradiometers or photometers to measure luminous flux, color coordinates or CRI
- Conform with CIE, DIN and IES standards
Precision Solutions for Angle Dependent Spatial Radiation Properties
- Optimized for precise measurement of LED and LED luminaires
- Maximum flexibility; can be seamlessly integrated with our broad range of spectroradiometers and photometers
- Conform to CIE, DIN and IES standards
Our wide range of light measurement instrumentation is complemented by ISO/IEC 17025 accreditation by NVLAP (NVLAP lab code 200823-0), resulting in unmatched performance, traceable standards and highly precise custom calibration options.
Parameter | Value |
CIE Goniometer Type | Type C with horizontal optical axis |
Driver | Stepper motor |
Angular Range C (horizontal) Axis | ± 360° with end switches |
Angular Range Gamma (vertical) Axis | ± 180° with end switches |
Resolution of Angle encoder | 0.01° |
Reproducibility of C-Axis | ≤ 0.1° at maximum sample load |
Reproducibility of Gamma-Axis | ≤ 0.05° at maximum sample load |
Angular Speed of C-Axis | 16 speeds (minimum) selectable to maximum 25° / second |
Angular Speed of Gamma-Axis | 16 speeds (minimum) selectable to maximum 14° / second |
Travel Range Z-Axis | 75 mm |
Equipment Setup | Stable base with integrated controller |
Height | 483 mm |
Width | 402 mm |
Depth | 1,750 mm (including measurement rail) |
Weight | 8 kg |
Interface | USB for connection to PC |
Power Supply | 115 / 230 VAC 50/60 Hz |
Power Rating | 120 W max |
Environmental | 0 to 35° C Relative Humidity 0 to 90% non-condensing |
| |
Sample Table | |
Mounting Plate | 160 mm diameter |
Maximum Sample Size | 200 mm diameter |
Maximum Sample Mass | 0.25 kg |
Specifications are subject to change without notice. | |
Complete Goniometric Measurement Systems
| GS-1220-GONIO-200 | LED/Luminaire Goniometric Spectral Measurement System, includes GS-1220-1-RM spectroradiometer (360-900 nm, 2.5nm slit setting, with shutter), 2m flexible fiber-optic coupler, Model 18795 Cosine Collector/Fiber Adapter with 1.5 inch sphere, Model 24876 baffle tube, Light Touch LED software, light touch controller, 940LED-200 Bench-top Computer Controller Goniometer, Type C, for use with lamps up to 6-inch max. dimension. |
