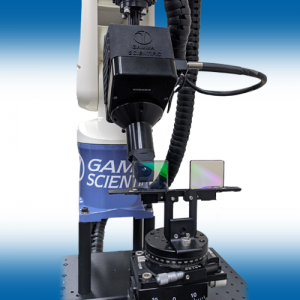

Gamma Scientific is introducing the NED-LMD Waveguide Tester as the world’s first specialized near-eye display measurement system that mimics human visual perception for fast, accurate and repeatable characterization of next generation optical waveguide-based Augmented/Mixed Reality displays and display components (light engine, waveguide, etc.). This comprehensive offering features a ‘robotic eye’ to help device manufacturers predict how the human eye would perceive their AR/MR displays, quantifying end user experience mapping the entire display field of view.
The test station is uniquely integrated with a uniform, tunable backlighting source, the award-winning Gamma Scientific SpectralLED®, which helps simulate any environmental lighting conditions e.g. illuminant D65 (sunlight), within a 380 nm to 1,000 nm spectral range. This allows for automated tests like see-through transmittance, ambient contrast, etc.
- The highest imaging resolution of any existing XR test instrument (>250pixels/deg)
- The largest device field of view coverage (>160deg H, 90deg V)
- Fully automated, standardized software test suite measuring see-through waveguide image quality and coloration defects (>20 individual tests, with and without ambient light mode)
- Capable of a large dynamic range (0.05 – 10 million Nits) and accurate color measurements using an integrated spectroradiometer
|✔||Field of View by Luminance and Contrast||✔||Design Eyebox Volume|
|✔||Eyebox Efficiency||✔||Pupil Efficiency|
|✔||Luminance Uniformity||✔||Color Uniformity|
|✔||See-Through Transmittance & Reflectance||✔||See-Through Haze|
|Color Gamut Area|
Image Geometric Distortion
|Resolution & MTF (sagittal & tangetial)|
