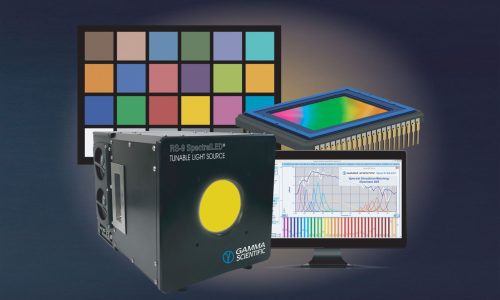

For the ultimate in color tunability and accuracy, the SpectralLED® Tunable uniform light source incorporates 34 discrete LED channels and two broadband white channels for synthesis of commercially available light sources or spectra that you import. The platform is easily adaptable for automated test processes and production line integration, with integrated optical feedback and temperature control to ensure rock-solid stability and consistent results.
Applications
- Camera and image sensor calibration
- Photodiode detector responsivity characterization
- Spectrum / illuminant simulation
- Diagnostic medical imaging
- Technical and industrial photography
Unprecedented Resolution & Accuracy
- 80mm Output with Radiance Calibration.
- Includes standard LED set comprised of 34 discrete LED wavelengths plus 2 broadband white channels, covering the 360nm – 1000nm wavelength range.
- Includes built-in integrating sphere, built-in photodiode feedback/monitoring system, onboard thermoelectric cooling for the LED array, and independent 16-bit DC constant current drivers for every LED channel.
- Firmware includes synthesis engine to simulate target spectra, serial API command set for flexible automated control, and a device specific ISO/IEC 17025 calibration with absolute NIST traceability.
- Includes a convenient GUI application, SpectralLED Assistant, for quick and easy operation of the RS-9.
Please contact us with your custom & OEM requirements.
| RS-9-1 Optical Specifications | ||
|---|---|---|
| Spectral Range | 360 nm to 1,000 nm (Custom ranges available on request) | |
| Spectral Output | 34 discrete LED channels, 2 broadband LED channels Visible resolution ~ 15nm, NIR resolution ~ 50 nm (typical channel spacing) | |
| Spectral Bandwidth | Typical VIS of 20nm and NIR of 50nm FWHM | |
| Source Geometry | 80mm dia, Lambertian radiant source (see RS-9-2 models for exit ports up to 600 mm dia) | |
| Translational Uniformity (Illuminant E) | Luminous uniformity: ≥ 95% for 65 mm at center and tapers off towards edges Chromatic uniformity: Δu’v’ Max ≤ 3 points in 65mm spot in center and tapers off) | |
| Radiance Range (Spectrum Dependent) | Typical maximum D65 15,000 µW / cm2 / sr Typical minimum D65 15 µW / cm2 / sr | |
| Luminance Range (Spectrum Dependent) | Typical maximum of 30,000 cd / m2 Typical minimum D65 30 cd / m2 (0.03 cd/m2 with ND filter option) | |
| CCT Range | 1,800K to 40,000K | |
| Preset Spectra | CIE illuminants A, B, C, D50, D55, D65, D75, E, F1-F12, Macbeth™ / X-Rite™ patches | |
| Accuracy Specifications | ||
| Illumination Stability | 95% stable after 50ms rise time for single channels, 50ms for broadband spectra. | |
| Illumination Accuracy | ± 2% Absolute, NIST traceable | |
| Spectral Accuracy | ± 1 nm centroid wavelength | |
| Color Accuracy | CIE 1931 x,y ± 0.003 | |
| Linearity | < 0.1 % RMS of full scale | |
| Temperature Stability | Within ± 1° C via active TEC | |
| Long-term Drift | Output ≤ 2% Spectral ≤ 1 nm (typical, channel dependent) | |
| Electrical Specifications | ||
| Electrical Resolution | 16 bit DAC for LED current 24 bit ADC for internal radiance monitor feedback | |
| Dynamic Range Adjustment (spectrum dependent) | 3 decades (4-5 decades with ND filter) | |
| LED Control | Pure DC constant current with floating differential sensing | |
| General Specifications | ||
| Software | Firmware includes full spectral calibration with spectral fitting, preset storage, real-time optical feedback, radiometric units supported | |
| Interface Connectors | USB 2.0 type B and DB-9 | |
| Interface Protocol | Simple ASCII commands with optional binary block transfer | |
| Supported Operating Systems | USB drivers for Windows, OSX and Linux via FTDI virtual COM port Legacy RS-232 serial port for integration (no OS required) | |
| Input Voltage & Power | 100 to 240 VAC at 50-60Hz, 600W maximum | |
| Dimensions (H x W x L) | 308mm (12.1 in) x 235mm (8.9in) x 236mm (8.9in). Weight 7.4 kg (16.2 lbs) | |
| Operating Temperature | Minimum: 15°C (60°F) | Maximum: 35°C (95°F) |
| Operating Humidity | Minimum: 20% | Maximum: 65% |
| Optional Upgrades | ||
| RS-9 WavemonTM | Multi-channel photodiode system w / amplitude feedback & real-time ƛ measurements | |
| RS-9-IRIS | Integrated IRIS w/ stepper motor control & additional API commands for easy adjustment | |
| Specifications are subject to change without notice | ||
RS-9 WavemonTM Multi-channel photodiode system with amplitude feedback and real-time wavelength measurement
The Wavelength Monitor System is a multi-channel photodiode system which provides amplitude feedback and real-time wavelength measurements. It consists of three photodiodes each with an independent transimpedance amplifier circuit. Proprietary optical filtering techniques allows for wavelength accuracy of +/-0.25nm and repeatability of +/-0.05nm. The Wavelength Monitor PCBA, photodiodes, and optical filter assembly is temperature stabilized using a Peltier cooler and thermistor in a PID feedback loop. This assembly is a discrete module which can be used with any RS-7 model.
RS-9-IRIS Integrated IRIS with stepper motor control and additional API commands for easy adjustment
The motorized iris for the RS-7-1 is a Variable Output Port Aperture using a built-in, motorized iris. RS-7 Firmware includes iris stepper motor control, and additional API commands are provided for easy adjustment of the iris diameter.
