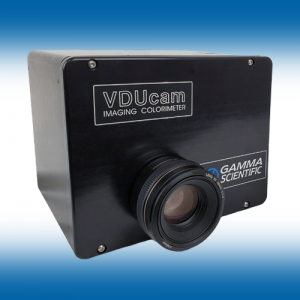

The VDU-1160 is a next generation family of 2D spectral imaging colorimeters combining the strengths of a CCD image sensor and high performance spectroradiometer. This results in a rapid and highly accurate system for display measurements including luminance, correlated color temperature (CCT), CIE chromaticity and uniformity. The system is particularly well suited for test and characterization of LCD, LED, OLED and quantum dot displays. Laboratory grade accuracy and flexibility are combined with high speed and durability for demanding production environments.
Unlike traditional colorimeters, this next generation design eliminates the need for color filters. All aspects of system performance are improved over previous generation technology with this approach.
Rapid, Accurate and Repeatable Display Characterization
- No color filters, significantly improving speed and accuracy
- Luminance, color and uniformity measurements
- 2D, XYZ, Yxy, Yuv, Duv, CCT and local contrast
- Contrast, white balance and color gamut determination
- User-programmable regions of interest
- Auto ranging and auto dark calibration
- Integrated spectroradiometer
- Spectral measurement and data including spectrum, peak and dominant wavelength
- ISO 17025 certified and NIST traceable calibration
Camera Specifications | ||||
Active Image (H x V) | 4096 x 3000 (12.29 MP) | |||
Pixel Size (μm) | 3.45 μm | |||
Sensor Size | 1.1″ Diagnonal | |||
Measurement Range | 0.05 cd/m2 to 50,000 cd/m2 | |||
Luminance | Accuracy | ± 1% compared to spectroradiometer | ||
Repeatability | 0.1% | |||
Color | Accuracy | ± 0.001 in CIE1931 x,y compared to spectroradiometer | ||
Repeatability | 0.0005 in CIE1931 x,y | |||
Integration Time Range | 30 μs to 10 seconds | |||
Measurement Parameters | Luminance (cd/m2) Correlated color temperature (CCT) CIE chromaticity coordinates (1) CIE 1931 x,y coordinates (2) CIE 1931 XYZ value Dealta uv (Duv) | |||
Wavelength Range (nm) | 380 to 780 | |||
Wavelength Data Increment (nm) | 1 | |||
Wavelength Reproducibility | ± 1nm | |||
Luminance *1*2 | Measurement Range | 0.05 ~ 50,000 cd/m2 | ||
Accuracy | ± 2% | |||
Repeatability (2σ) | 0.2% | |||
Color *1*2 | Measurement Range | 0.05 ~ 50,000 cd/m2 | ||
Accuracy | ±0.002 in CIE1931 x,y for white | |||
Repeatability (2σ) | 0.0005 in CIE1931 x,y for white | |||
Stray Light | -25 dB max *3 | |||
Polarization Error | < 3% | |||
Integration Time Range | 100 μs to 5 sec | |||
System Configuration | ||||
Interface | Ethernet 100/1,000, USB2.0 | |||
Power | 12V, 3A | |||
Dimensions (mm) | 169 W x 150 L x 160 H <3.4kg | |||
Environmental | 15 to 35 °C, relative humidity 70% or less without condensation |
Specifications are subject to change without notice.
*1 Luminance and color testing are based on standard light source at 2856K, 6500K & 9300K
*2 Measure in normal mode with temperature 23±2 °C and relative humidity 50% or less
*3 Using 550nm monochromatic light input and measuring stray light ratio at 550nm ±40nm
*4 30Hz AC/DC 10% sine wave unless otherwise specified
