NED™ AR/VR Testing Solutions
Specialized test instruments for qualifying near-eye displays at every step of the new product introduction process, from R&D incubation to Volume Production.
NED™ M-Series
The NED™ M Series is the ideal all-in-one production benchtop test solution with a medium Field-of-View (FOV) for high-speed, high-resolution, and high-accuracy testing of near-eye displays. The NED™ M Series, built on a high-performance 2D colorimeter platform, captures up to a 80-degree FOV in a single snapshot with high resolution for 2D color, luminance, and image quality characterization. NED™ M Series includes the GsXRTest™ suite, a dedicated, easy-to-use software platform providing rapid test results, plots, and pass/fail analysis.

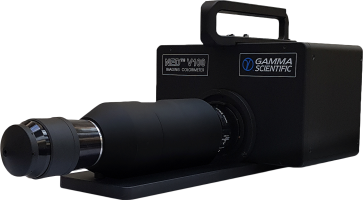

NED™ V-Series
The NED™ V Series is a specialized line of benchtop imaging colorimeters for high-speed testing and calibration of Augmented Reality (AR) and Virtual Reality (VR) display modules. The NED™ V Series is ideal for device manufacturers in high-volume production environments requiring instantaneous Field-of-View captures for quality assurance of their modules.
NED™ W-Series
The NED™ W Series is the ideal all-in-one production benchtop test solution with a wide Field-of-View (FOV) for high-speed, high-resolution, and high-accuracy testing of near-eye displays. The NED™ W Series, built on a high-performance 2D colorimeter platform, captures up to a 150-degree FOV in a single snapshot with full resolution for 2D color, luminance, and image quality characterization. NED™ W Series includes the GsXRTest™ suite, a dedicated, easy-to-use software platform providing rapid test results, plots, and pass/fail analysis.
Test Applications for:
- AR/VR consumer electronics headsets
- Gaming, entertainment and media devices
- Industrial, enterprise, education and training displays
- Healthcare and medical systems
- Fixed automotive Head-Up displays (HUDs)
- Helmet-mounted displays (HMDs)
- Display components
- High Volume Benchtop Testing
- Increase efficiencies and reach
Comparison chart
| Product Family | NED™ E | NED™ M | NED™ W | NED™ V | ||||
|---|---|---|---|---|---|---|---|---|
| Platform | Robotic Eye™ | Benchtop | ||||||
| Model # | E100 | E101 | M80 | W150 | V24-75 | V24-100 | V65-75 | V65-120 |
| Resolution (PPD) | 250 | 250 | 144 | 60 | 93 | 55 | 155 | 97 |
| FOV Horizontal | 160° | 160° | 65° | 150° | 56° | 96° | 60° | 96° |
| FOV Vertical | 45° | 90° | 48° | 117° | 49° | 83° | 45° | 72° |
|
Core products can be customized with the following options:
Fully custom solutions also available |
||||||||
| Spectrometer | Incl | Incl | Incl | Incl | Incl | Incl | ||
| 6-axis robot | Incl | Incl | N/A | N/A | N/A | N/A | N/A | N/A |
| XYZ translation stage | N/A | N/A | ||||||
| Waveguide testing | ||||||||
| Rx – vision corrected testing | N/A | N/A | N/A | N/A | N/A | N/A | ||
| Darkroom enclosure | ||||||||
