SpectralLED®

State of the Art Image Sensor Testing and Calibration Technologies

The award-winning SpectralLED® Tunable Light Source series delivers unmatched resolution and accuracy. These products support a range of applications for testing and characterizing camera and image sensors, ambient light sensors, photodiode detectors, and more.

SpectralLED® Tunable Light Source products are tunable to virtually any spectrum, supporting spectral and color options from UV to NIR, including broadband whites. With nearly zero downtime and computer-controllable commands for simple integration into sensor test systems, they provide an exceptional operating lifespan and cost efficiency.

  • Stable and repeatable light output
  • Fast spectral setting and stabilization
  • Self-calibrating
  • Custom and OEM configurations

Introducing the SpectralLED® RS-9 Series

The RS-9 is the latest advancement in the SpectralLED® Tunable Light Source series. Engineered for precision and versatility, it features an expanded spectral range (360-1000 nm), increased UV coverage, additional LED channels, and a compact, lightweight design, all while delivering superior spectral and spatial uniformity.

SpectralLED® systems can be tuned to virtually any spectrum, offering color options ranging from UV to NIR, including broadband whites. With near-zero downtime and full software control for seamless integration into sensor test systems, they provide an exceptional operating lifespan and cost efficiency.

  • Stable and repeatable light output
  • Fast spectral setting and stabilization
  • Self-calibrating
  • Uniform illumination across a large FOV

RS-9-1 BENCHTOP UNIFORM LIGHT SOURCE

For the ultimate in resolution and accuracy, the SpectralLED® Tunable uniform light source incorporates 34 discrete LED channels and two broadband white channels for synthesis of commercially available light sources or spectra that you import.

LEARN MORE

RS-9-1-SWIR

Incorporates 12 short-wave infrared wavelengths for synthesis of commercially available light sources or based on spectra that you import.

LEARN MORE

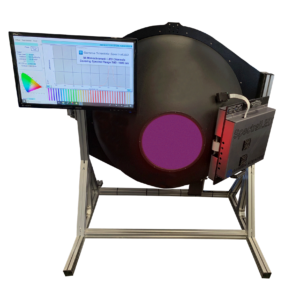

RS-9-2 LARGE OUTPUT PORT

When you require a large area (up to 600mm in diameter), highly uniform light source for camera and image sensor calibration, the SpectralLED® Large Output Port delivers brightness, radiometric stability and wavelength accuracy that is unmatched in the industry.

LEARN MORE

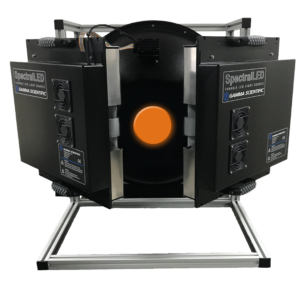

RS-9-2-VIS SWIR

Incorporates up to 34 discrete LED channels, two broadband white channels (SWIR) and 12 shortwave infrared easily adaptable for automated test systems and production line integration, with integrated optical feedback and temperature control to ensure rock-solid stability and consistent results.

LEARN MORE

RS-9-3 FIBER OPTIC OUTPUT

Provides flexible illumination for applications where space is limited. Systems can be configured with multiple outputs enabling several devices to be simultaneously illuminated at different working locations.

LEARN MORE

RS-9-4 WAFER PROBE ILLUMINATOR

Designed to be adapted to test head manipulators and handler instrumentation for wafer-level CCD and CMOS sensor test and calibration.

LEARN MORE
LOAD MORE

Test Applications for:

  • Camera & Image Sensor Calibration (CCD, CMOS, etc.)
  • Ambient Light Sensor Calibration
  • OEM Camera Manufacturing
  • Fluorescence Excitation/Microscopy
  • Infrared Sensor Test/Calibration
  • Fingerprint Sensor Test
  • Spectrum/Illuminant Simulation
  • Diagnostic Medical Illuminators/Imaging
  • Technical and Industrial Photography
  • Cinematography
  • Lightbox
  • Copier/Scanner Calibration

SpectralLED ® RS-9 PRODUCT CONFIGURATIONS

Product Family RS-7-1 RS-7-2 RS-7-3 RS-7-4 RS-7-6 RS-7-7 RS-7-SWIR
Product Name Benchtop Large Outport Port Fiber Optic Output Wafer Probe Source Wide Field of View Light Booth Short-Wave Infared
Wavelength Range 380 – 1000nm 380 – 1000nm 380 – 1000nm 380 – 1000nm 380 – 1000nm 380 – 1000nm 900 – 1700nm
Light Delivery Method 75mm Output Port 150mm Port – .5 Meter Sphere
300mm Port – 1 Meter Sphere
600mm Port – 2 Meter Sphere 		6.35mm, .55NA Fiber(s) 110mm Field of View 180 Degree Field of View Via 75mm Output Port 45 x 45 x 45cm Illumination Area 75mm Output Port
Configurations Motorized Iris Up To 8 SpectralLED® Sources Per System 1 to 4 Fibers, Most Custom Configured Up To 98% Uniformity Fiber Optic Output
Wafer Probe Source
Baffle Tube Output
Wide Field of View
Core products can be customized with the following options:
Optional RS-7 Wavemon™ and LED Channel Optimization
READ MORE READ MORE READ MORE READ MORE READ MORE READ MORE READ MORE

Gamma Scientific’s light source calibration systems are NIST traceable and undergo initial calibration in our world-class ISO-IEC accredited NVLAP laboratory (NVLAP lab code 200823-0).

Product Family RS-9-1 RS-9-2 RS-9-3 RS-9-4 RS-9-6 RS-9-7 RS-9-1-SWIR
Product Name Benchtop Large Outport Port Fiber Optic Output Wafer Probe Source Wide Field of View Light Booth Short-Wave Infared
Wavelength Range 360 – 1000nm 360 – 1000nm 360 – 1000nm 360 – 1000nm 360 – 1000nm 360 – 1000nm 850 – 1900nm
Light Delivery Method 80mm Output Port 150mm Port – .5 Meter Sphere
300mm Port – 1 Meter Sphere
600mm Port – 2 Meter Sphere 		6.35mm, .55NA Fiber(s) 110mm Field of View 180 Degree Field of View Via 75mm Output Port 45 x 45 x 45cm Illumination Area 80mm Output Port
Configurations Motorized Iris Up To 8 SpectralLED®
Sources Per System
SWIR available 		1 to 4 Fibers, Most Custom Configured Up To 98% Uniformity Fiber Optic Output
Wafer Probe Source
Baffle Tube Output
Wide Field of View
Core products can be customized with the following options:
Optional RS-9 Wavemon™ and LED Channel Optimization
READ MORE READ MORE READ MORE READ MORE READ MORE READ MORE READ MORE

Gamma Scientific’s light source calibration systems are NIST traceable and undergo initial calibration in our world-class ISO-IEC accredited NVLAP laboratory (NVLAP lab code 200823-0).
