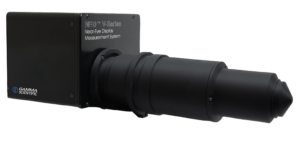

The NED™ V-Series production/benchtop testers are 2D spectral imaging colorimeters designed for high-speed, high-resolution, and high-accuracy testing of near-eye displays. They feature models V24-75 with a 75-degree Field-of-View (FOV) and V24-100 with a 110-degree FOV. These testers provide rapid and precise measurements for luminance, CIE chromaticity, correlated color temperature, dominant and peak wavelength, spectral power distribution, and uniformity. The NED™ V-Series is ideal for device manufacturers in high-volume production environments. It combines laboratory-grade accuracy and flexibility with fast operation and durability, enabling characterization of Virtual Reality, Augmented Reality, Mixed Reality, and Heads-Up Displays (VR, AR, MR, and HUDs).
• 3-5 mm entrance pupil to emulate the human eye
• 0 to 8 diopters electronic/software focus lens accommodates
different virtual image distances.
• High sensitivity, high dynamic range for color and luminance
measurements
• Dedicated, easy to use software with quick test results, plots and
pass/fail analysis
• SDKs and support for easy integration into production lines
✔ | Color and Luminance | ✔ | Color Uniformity Luminance |
✔ | FOFO or Sequential Contrast | ✔ | Uniformity Field of View (FOV) |
✔ | Checkerboard Contrast | ✔ | ANSI Contrast |
✔ | Geometric Distortion | ✔ | Chromatic Aberration |
✔ | Color Gamut Area | ✔ | MF and Contrast |
✔ | Flicker (optional) |
Camera Specifications |
||
Active Image (H x V) | 5320 x 4600 (24.47 MP) | |
Pixel Size | 2.7 μm (H) x 2.7 μm(V) | |
Sensor Size | 19.3 mm Diagonal (Type 1.2) | |
Measurement Range | 0.1 cd/m2 to 100,000 cd/m2 | |
Luminance*1, 2, 3 | Accuracy Repeatability |
±1% relative to spectroradiometer ± 0.10% |
Color | Accuracy Repeatability |
±0.001 in CIE x, y relative to spectroradiometer 0.0005 in CIE x, y |
Measurement Range | 30 μs to 10 seconds | |
Measurement Parameters | Luminance (cd/m2) Correlated color temperature (CCT) CIE chromaticity coordinates (1) CIE 1931 x,y; (2) CIE XYZ values Delta u, v (Duv) Angular resolution (cycles/degree) Angular position (degrees) |
Spectroradiometer Specifications |
|||
Wavelength Range (nm) | 380 to 780 | ||
Wavelength Data Increment (nm) | 1 | ||
Wavelength Reproducibility | ± 1 nm | ||
Stray Light | -25 dB max | ||
Polarization | < 3% | ||
Integration Time Range | 100 μs to 5000 ms | ||
Luminance*1, 2, 3 | Measurement range Accuracy Repeatability |
0.05 ~ 100,000 cd/m2 ±2% ±0.2% |
|
Color | Measurement range Accuracy Repeatability |
0.05 ~ 100,000 cd/m2 ±0.002 in CIE1931 x, y 0.0005 in CIE1931 x, y |
Lens/Field of View (FOV) Configuration Options |
||
Model/Configuration # | V24-75 | V24-100 |
Equivalent Visual Resolution (Snellen) | 20/16 | 20/20 |
Resolution (pixel per degree, PPD) | 93 | 55 |
FOV Horizontal | 56° | 96° |
FOV Vertical | 49° | 83° |
FOV Diagonal | 74° | 110° (diameter) |
