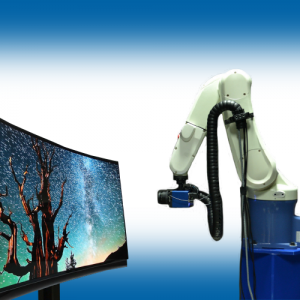

The GS-1290-DMS-RBT series combine a 6-axis robot, our state-of-the-art GS-1290 spectroradiometer, and decades of software and integration expertise into an automated display measurement solution.  The system delivers fast and accurate test and characterization information in a tried-and-true integrated platform.

Each system is fully customizable to meet your immediate needs, while also offering the flexibility to accommodate future display testing requirements. Robotic Display Measurement Systems allow you to replicate real-world applications by keeping the display stationary throughout the measurement process.

Measurement Capabilities

  • Brightness and ANSI contrast
  • True IEC Color Coordinates and Spectrum Information
  • White Point and Color Gamut
  • Color and Brightness Uniformity
  • Viewing Angle
  • Response Time
  • Polarization analysis

Exceptional Sensitivity and Speed for Display Characterization

  • Compatible with curved, flat, 2D or 3D displays
  • LCD, OLED, micro LED display and Quantum Dot Display
  • Flexible software platform for easy customization
  • Integral pattern generator
  • Self-alignment functionality with ultrasonic distance finder
  • Spectroradiometer featuring back thinned CCD technology for highly accurate measurements of wavelength, color and power

Original system calibration is performed in Gamma Scientific’s NVLAP accredited laboratory (NVLAP Lab Code 200823-0) using NIST-traceable standards.

General Specifications

Angular Repeatability

± 0.01 degrees

Angular Resolution

0.002 degrees

Range of Motion

± 90 degrees


Up to 1.3 meters

Maximum Measurement Speed

Approximately 1 per second

Computer Control

USB, RS-232, Ethernet


Light TouchTM DMS and RadOMAcam

Standard Windows-based user interface

Power Requirements

220 VAC, 3-phase



360 to 950 nm

10 nm slit setting

Specifications are subject to change without notice.
